Dr. Judy Burnfield of the Madonna Rehabilitation Hospital and Research Institute partnered with SportsArt after concluding that our elliptical mimicked the Kinematic and Electromyographic (EMG) patterns of walking closer than any other.

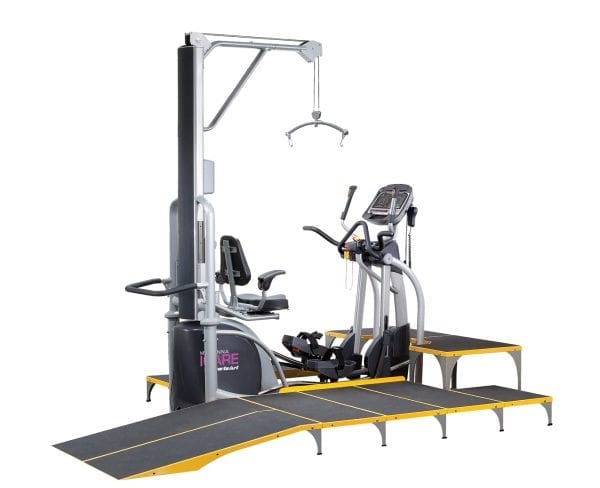

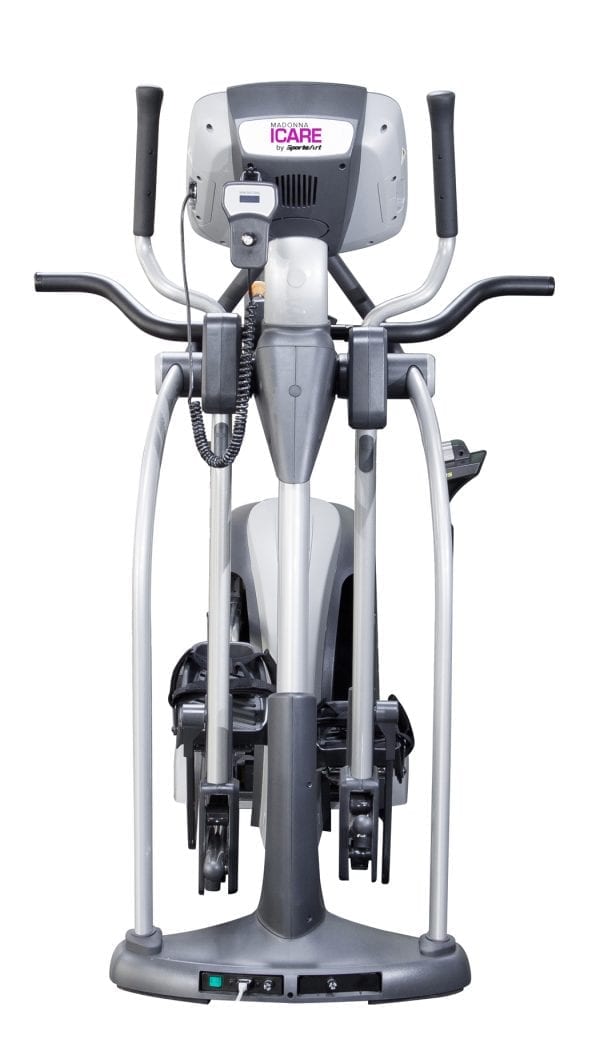

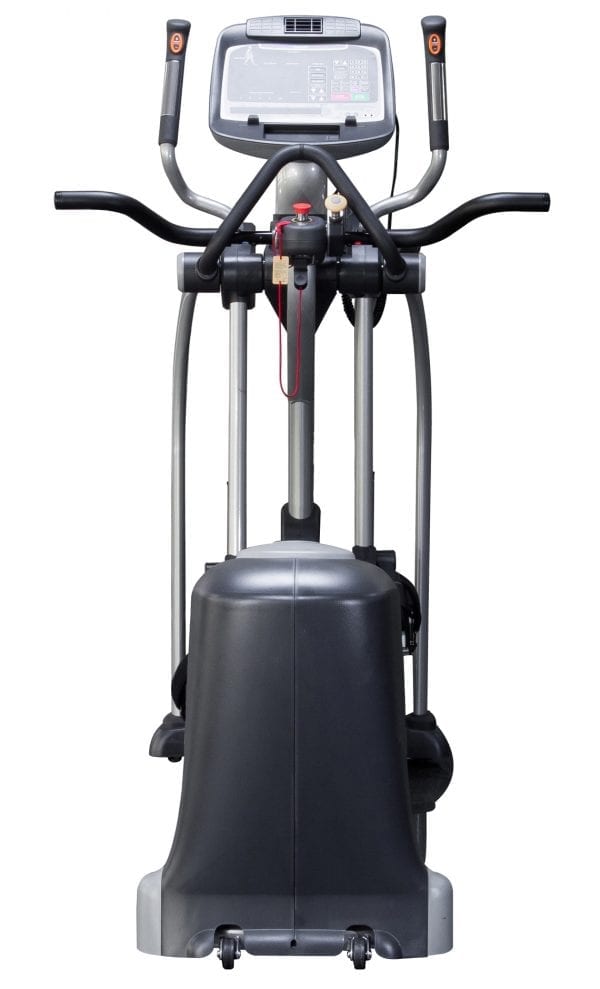

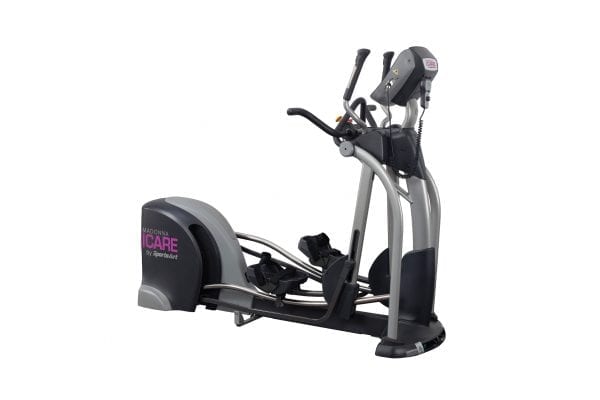

It was through this partnership that the ICARE rehabilitation system was created, comprised of three parts: the E872MA elliptical, E872MU body unweighting system, and the E872MP wheelchair ramp, stairs, and clinician platform. The full ICARE system provides zero, partial, or full-body weight support and motor guidance which frees clinicians from hours of strenuous manual manipulation, allowing them to provide detailed feedback to the patient. To learn more, click the button below.



  • 18-29 inch (45 -76cm) electronically controlled adjustable stride; accommodates a wide variety of users
  • 40 levels of resistance provide greater customizability
  • MyFlex™ pedal cushioning system creates a comfortable workout platform
  • Forward and reverse motor
  • Automatically adjustable, adaptive motor assistance
  • Single or dual leg training options
  • Fingertip controls
  • Dual action motion

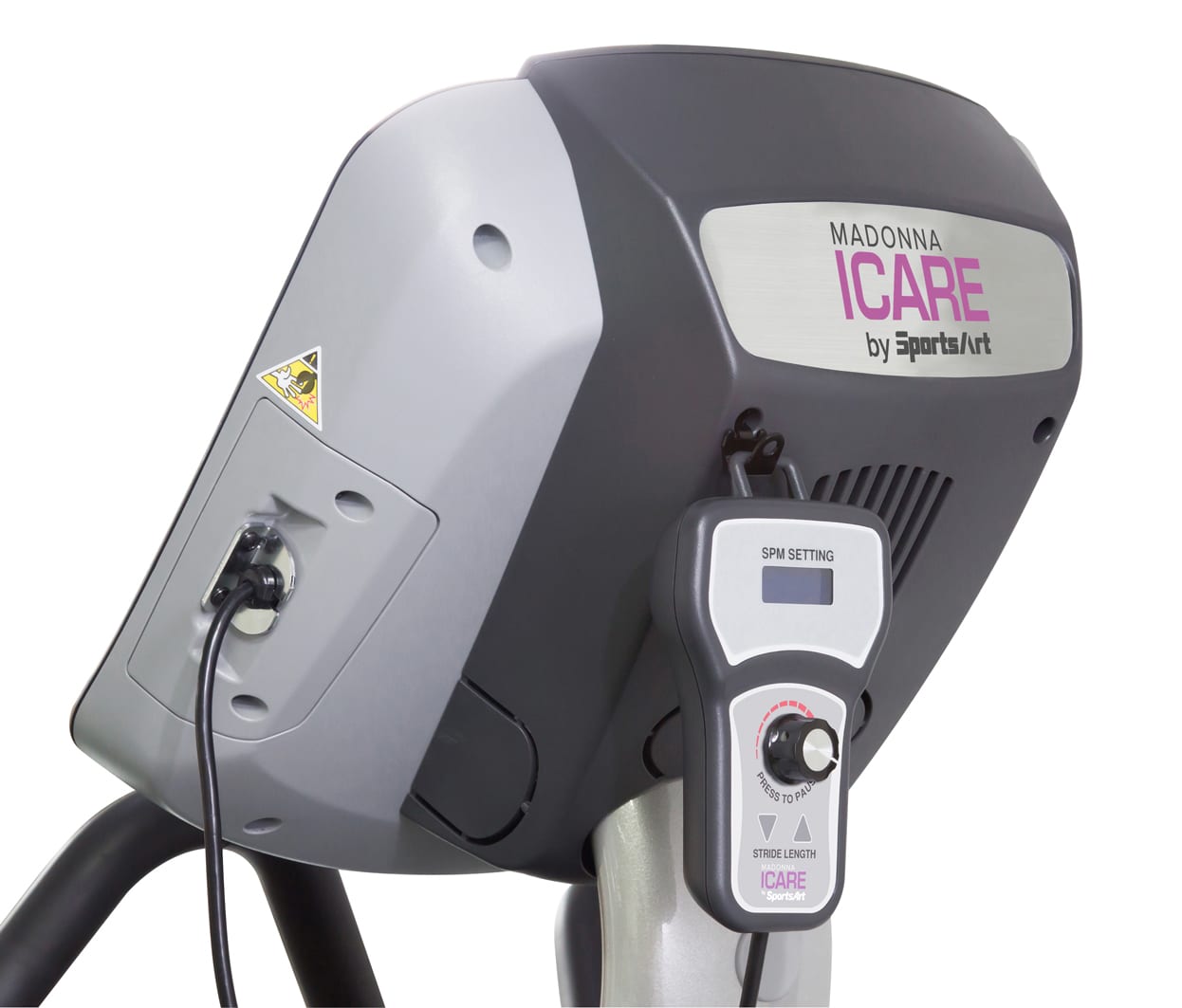

  • Remote control

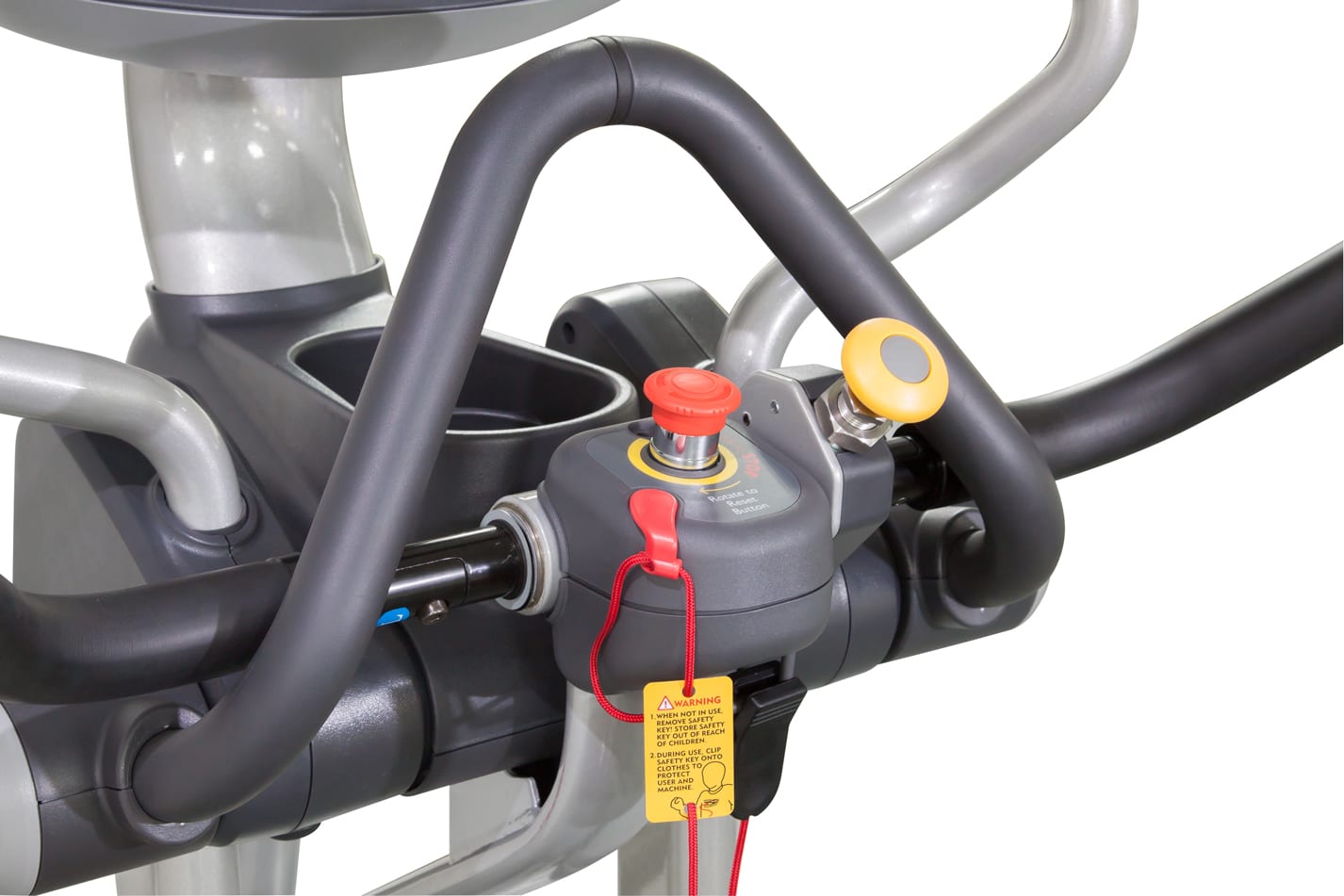

  • Infrared safety system
  • Cushioned pedals with foot straps
  • Wheelchair ramp, stairs, and clinician platform options

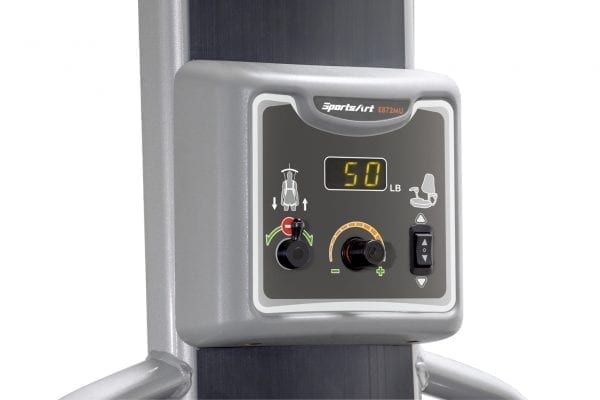

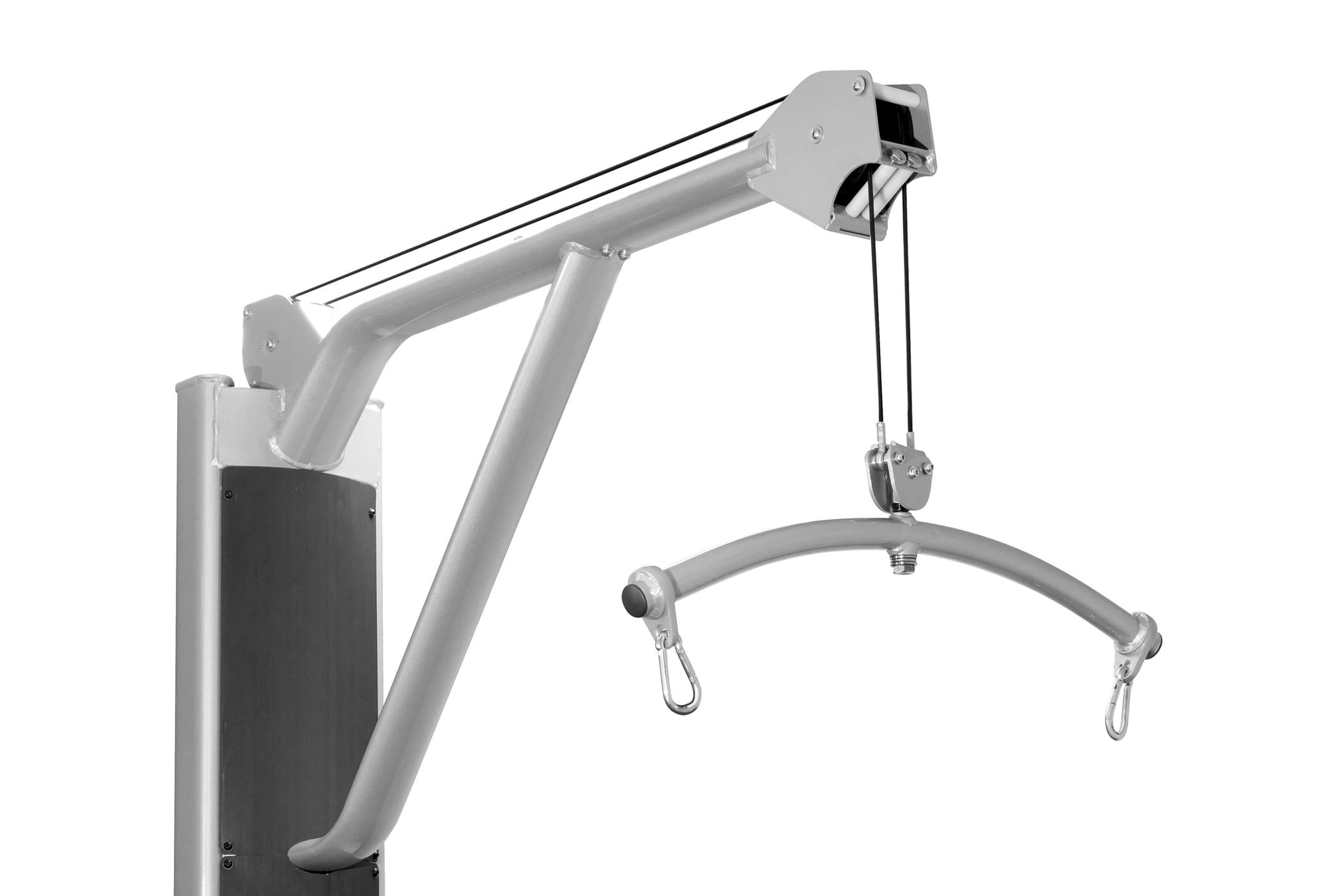

  • Variable unweighting harness supports patients body weight
    *This unit is for sale in the U.S. only

Additional information

Unit Weight

MA: 253 lbs | MU: 360 lbs | MP: 343 lbs

Dimensions (L x W x H)

MA + MU + MP: 145 x 89.3 x 111.4 in / 368.2 x 226.8 x 283 cm, MA: 86.6 x 41.7 x 70.8 in / 220 x 106 x 180 cm, MP: 145 x 89.3 x 21.4 in / 368.2 x 226.8 x 54.2 cm, MU: 64.2 x 26.4 x 111.4 in / 163 x 67 x 283 cm


40 Levels

Stride Length

18 – 29 in / 45.7 x 73.7 cm

Power Requirement

120V / 60 Hz

Max User Weight

MA: 450 lbs | MU: 400 lbs

Read Outs

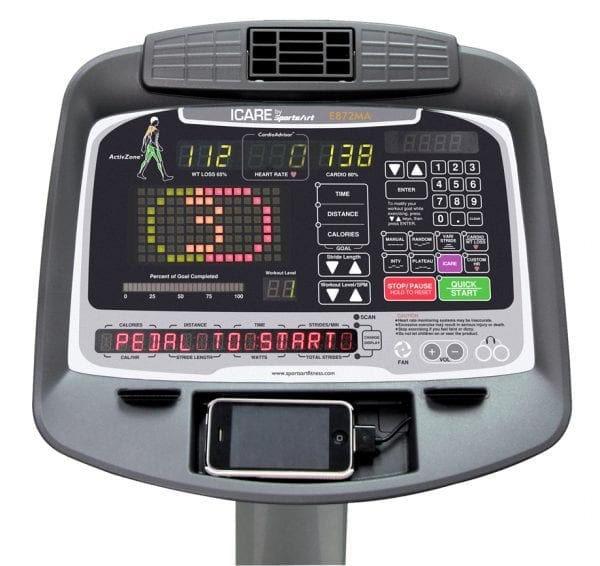

Heart Rate, Cardio Zone, Weight Loss Zone, Active Zone, Calories, Level, Time, Distance, Strides/Min, Stride Length, Total Strides, Human Watts

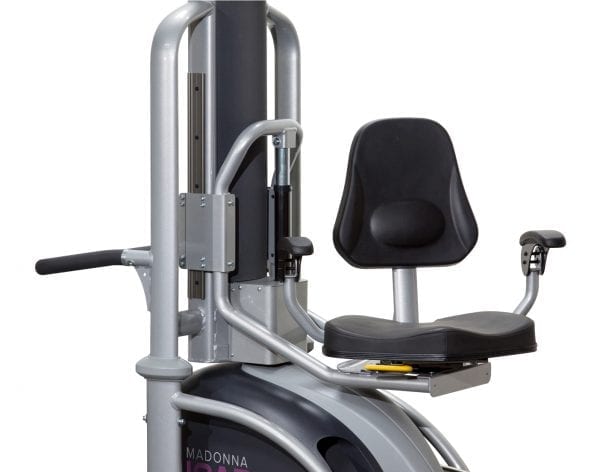

Automatically adjustable adaptive motor assistance, Dual action motion, Electronically controlled pneumatic height adjustable seat, Fingertip Controls, Forward and reverse motor, Infrared safety system, Passcode control, Remote control, Single or dual leg training options, Unweighting harness, Wheelchair ramp, stairs and clinician platform

Optional Features

iPod & iPhone 30-pin connector, SA Well+™ workout tracking function


Sell Sheet
